Battery Pods |
12/04/09 |

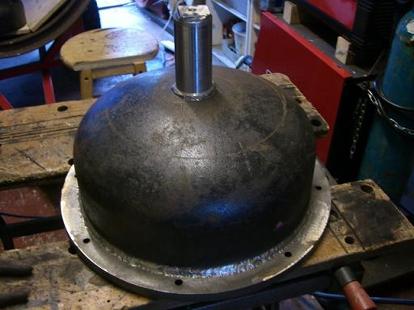

These endcaps could only be welded from one side. In order to be sure I got 100% penetration, I raised them up about 3mm using washers to leave quite a large gap. The caps already had a 30 degree bevel on so I thankfully didn't have to grind one. I did the first root run straight into the root and it came nicely through the other side. In this picture, I have completed the second run, which takes it flush to edge of the cap. I MIG welded these runs as its quicker and with the heat from the first run, this second filling run went in smoothly. |
