Lifting Eyes

03/07/08

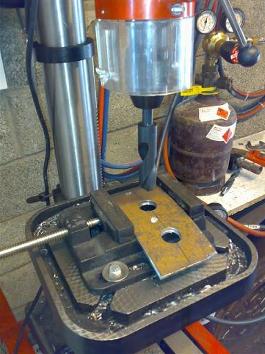

I’ve cut the 6 x 3” plate from the piece left over from cutting the main tower hole.  I’m using this large drill to put 25mm holes for the base of the lifting eye.  This will leave about 2mm all around the edge.  I then put a 60 degree ish bevel on the old fashioned way with a round hand file.  Its tough the A516 steel and it took a while, but I need to be sure I get 100% penetration on these parts.
