Motors

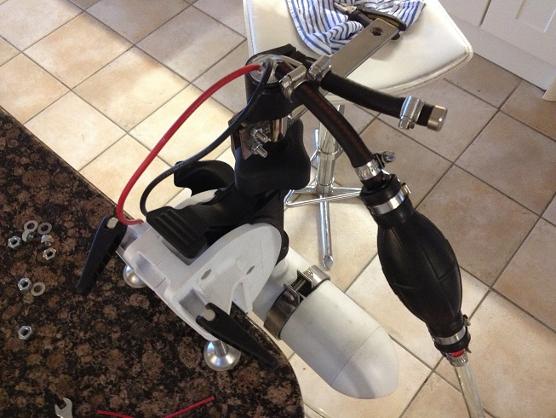

I fitted the rest of the bladder system to the aft motor.  It’s a marine fuel bulb fitted to the 6mm stainless pipe going into the motor casing.

The vent pipe I have blocked off with a machined stainless bung as well as the end of the inlet tube (clear piping).

The idea is I can open the vent, pump WD40 or similar oil into the motor and then close it off.  The bulb will act as a bladder for any air bubbles.

It is now ready to fill with oil.
