Plumbing

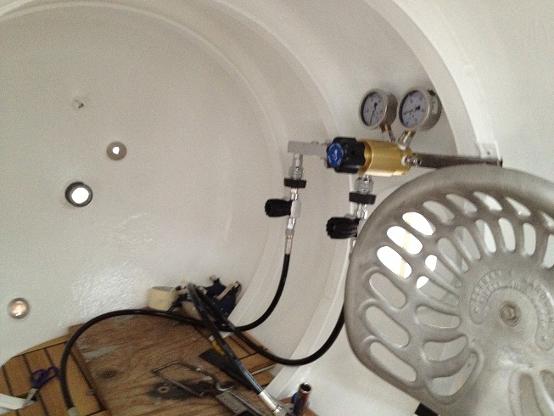

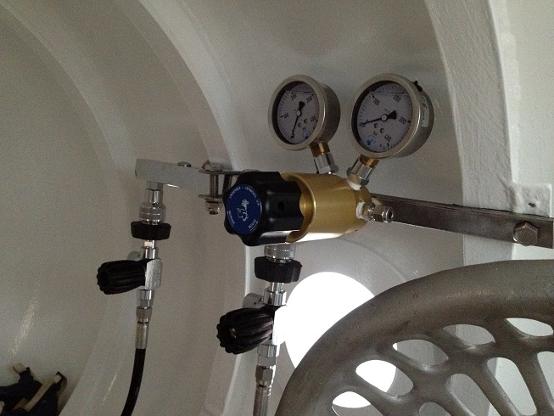

I wasn’t sure where to put the manifold which is the heart of the HP air system.  In the end I went for over the aft port viewport as I had welded on a random tab near there.  It took me a while to fabricate a mounting bracket for it.  The bracket bolts to the tab, then has an “L” shape with a bolt through to tighten it to the next frame.  There is a “V” shaped seat to level the manifold up as the bracket is not vertical.  The manifold is then cramped to the V bracket via 4 tabs with bolts through.  It’s solid, that’s the point.  I re-fitted the seat so I could be sure it wasn’t in the way.
