Elec. Through Hulls

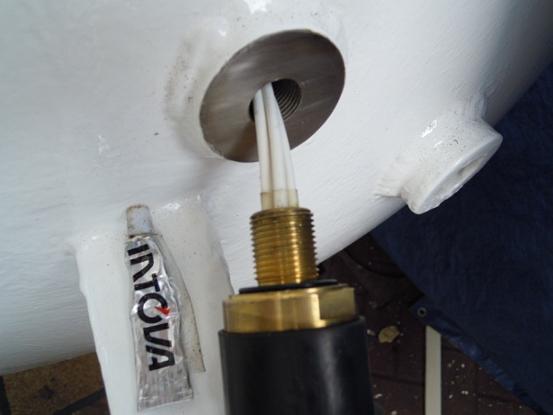

I fitted the sub conn high power bulkhead connector I had bought some time before.  I put a slither of silicone grease on the “O” ring before fitting it up.  I also attached the connector clamp (not shown) that will hold the 2 parts together.

As shown, I have wired it up with just 2 cables but after discussion with the group, I will wire 2 pairs together to use all 4 for the connection as the cables are only rated at 50 amps (my motors are 56amp max).  It’s not much I know and a shame as I was hoping to have 2 spare for something else, but I’d rather be on the safe side and not have it overheat.
