Electrics

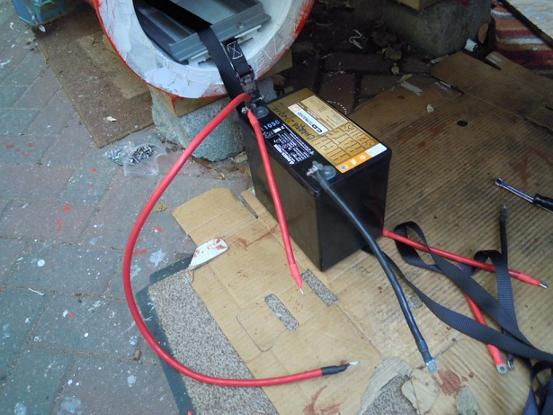

At last I was able to start fitting the batteries.  This is battery number 1 going in.  I made all the cables the week before but forgot to take pictures.  I borrowed a hydraulic crimping machine for the terminals.  Saved a lot of hastle soldering them all.  I finished the terminals off with heat shrink tubing.

There are 4 batteries wired together in each pod.  Batteries  1+2 in parallel and 3+4 in parallel, then pair 1 + 2 in series to give me 24v overall.
