04/08/12

Business Name

Electrics

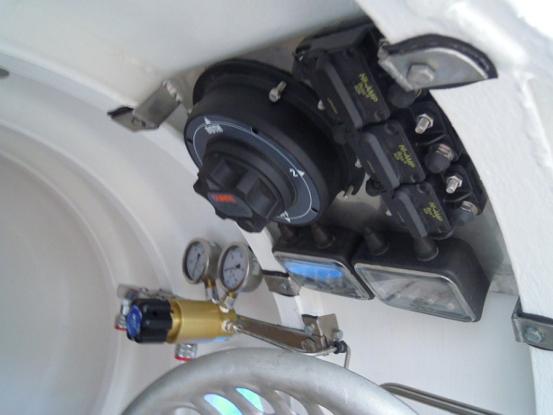

I fitted the main electrics panel.  There is the Durite main power switch on the left.  Next the 3x 60amp waterproof circuit breakers for the main motors.  I got these from Minn Kota USA but have since seen the identical things in my local marine shop.  Absolutely exactly the same, just in a different packet.  Similar price at least but they must be just some generic product.

I got another rubber box and fitted both with cable ties so they are completely insulated.  They came with copper wire connectors inside but they were not quite what I needed  so I made the bus bars myself from 20mm flat stainless and some bolts.  Wiring still to do and I will add insulating rubber to the underneath of the main switch, just in case something comes loose.
