Through Hull

14/08/09

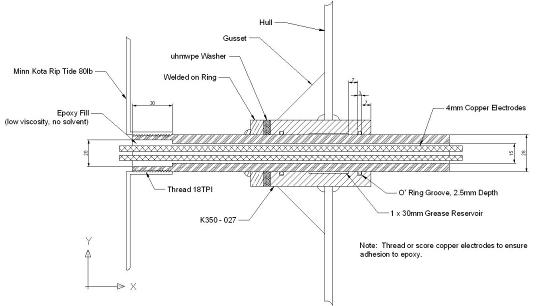

Alternate design for the motor rotating through hull.  This is modified to fit the Minn Kota Rip Tide 80lb instead of the pods shown on the plans.  Its basically the same 3” through hull with a grease reservoir added.  The shaft is totally different.  28mm OD to fit into the Minn Kota motor pod.  Threaded 18tpi at the motor end and bored out to take the copper electrodes.  Then filled with epoxy to make it pressure proof.  The motor itself will be oil compensated.
